Make every effort to build a new brand in China's instrument industry
1 Years
| Ask Lasest Price | |
| Price : | $9,900/sets >=1 sets |
| Delivery Time : | Delivery time for minimum order quantity ≤ 30 days |
| Payment Terms : | T/T L/C |
| Supply Ability : | 100 units/day |
| Brand Name : | National Instruments |
| Model Number : | sbRIO-9221 |
| 名字 | 国家仪器 SbRIO-9221 C 系列电压输入模块 |

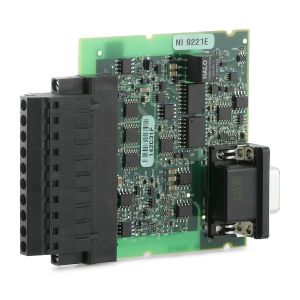

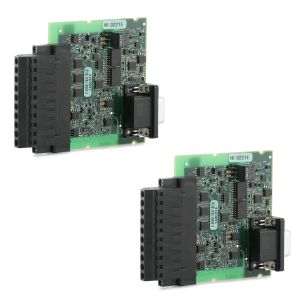

国家仪器 sbRIO-9221 C 系列电压输入模块
sbRIO-9221 是一种 C 系列电压输入模块.sbRIO-9221 模块由 National Instruments 开发.sbRIO-9221 电压输入模块有 2 种版本.这些版本之间的区别是输入隔离电压和连接器类型.一种模块配备 D-SUB 连接器和 60 VDC 接地隔离.另一种版本具有螺钉端子前连接器.螺钉端子版本的 NI sbRIO-9221 模块接地隔离为 250 Vrms.sbRIO-9221 的部件编号是 781115-01 和 781116-01.
sbRIO-9221 有 8 个电压输入通道.NI sbRIO-9221 模块的输入类型是模拟单端.sbRIO-9221 电压输入模块配有 D-SUB 连接器或 10 脚,可拆卸的螺钉端子连接器.D-SUB 连接器有 25 个针脚.每个通道都有一个指定的“AI”引脚用于电压信号连接.NI sbRIO-9221 模块支持最高 800 kS/s 的采样率.sbRIO-9221 模块不支持同时采样.NI sbRIO-9221 模块的通道对过压单独进行保护.
The sbRIO-9221 C Series Voltage Input Module has an input range from -60 V to 60 V. Scanning, buffering, and sampling of the input signals is done by an ADC with resolution of 12 bits. Due to its wider input range, the sbRIO-9221 module is ideal for various applications. The main applications of the NI sbRIO-9221 module are in the automotive industry. The sbRIO-9221 module is also used in other industrial level applications, as well as measurement applications of smaller cells.
最大差分模拟输入通道:0
conformal coating:无
模拟输入电压范围:-60 V至60 V
密封:无
模拟输入分辨率:12位
最大采样率:800 kS/s
模拟输入隔离:通道到地隔离为250 Vrms
最大单端模拟输入通道:8
前面连接:螺钉端子
同时采样:无
支持的硬件平台:CompactRIO
|
|
